WTTPUTTY WT 5903-100S

WT 5903-100S Thermal conductive material is sheet shaped and can be pressed to a minimum of 160-180 (um), to reduce interfacial thermal resistance and increase thermal conductivity rate.

▶ Typical Application

● High-end equipments and automotive electronic coolings heating components, such as electronic devices, semiconductor memory devices, etc

● General-purpose inverters, Medical equipments, Digital Signal Controllers

● Automotive electronics, such as on-board cameras, motor control units, automotive navigation, automotive lighting (LED)

● Laser HUD light sources

● Consumer microelectronics and hand held electronic devices（like mobile phone, computer, etc）

● Base stations, IGBT modules

▶ Parameter Index

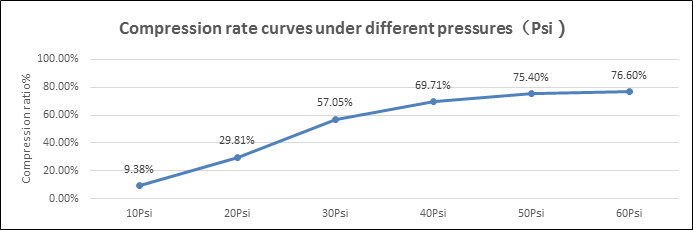

▶ 1.0mm Compression Curves under Different Pressures

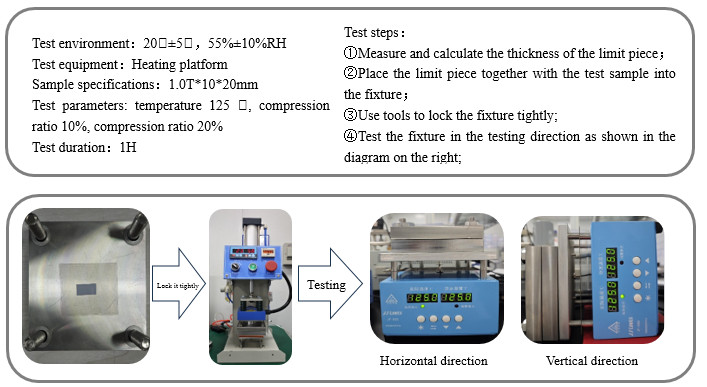

▶ High Temperature Limit Compression Test

Test results：

   After being compressed by 10% and 20% in the limit position and subjected to a horizontal and vertical heating test at 125 degrees Celsius for 1 hour, the shape of the product after compression (horizontal and vertical directions) was basically the same, and there was no flow or vertical flow phenomenon (horizontal and vertical directions) at a high temperature of 125 degrees Celsius for 1 hour.

▶ Function and Characteristics

● Easy to use, easy to remove, good insulation performance, and good rebound performance

● Excellent flexibility: can be perfectly embed uneven interface

● Excellent flame retardant performance: meet UL94-V0 level

● RoHS, REACH comliance

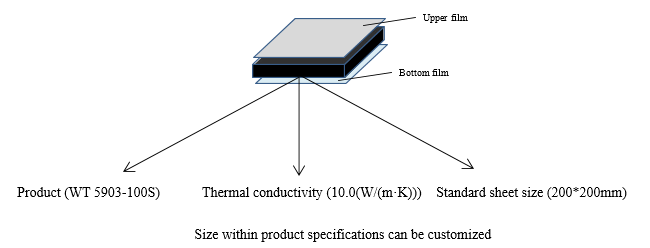

▶ Dimensions

▶ Remarks

Waermtimo reserves the final amendment rights to product specifications and documentation.
