WT 5915C-T15060M2 Electromagnetic Absorptive Thermal Pads
WT 5915C-T15060M2 is a high-performance electromagnetic absorptive and thermally conductive material that can be directly applied between heat sources and heat sinks. At the same time as exporting heat, it can absorb leaked electromagnetic radiation, achieving the goal of eliminating electromagnetic interference. Provide excellent solutions for thermal conductivity and electromagnetic shielding of electronic communication products.
▶ Product features
● Thermal conductivity:15.0W/(m·K)
● Excellent wetting interface effect
● At room temperature, it appears as a soft sheet, easy to operate, and has good reworkability
● 2.0mm sheet can effectively absorb EMI with frequencies between 8.6-10.6GHz
▶ Application Fields
● Commercial communication: high-end equipment such as antennas, base stations, optical templates, routers, switches, radar systems, etc
● Millimeter wave applications: 5G communication, millimeter wave radar
● Industrial electronics: automotive electronics, drones, etc
● Instrument measurement: power amplifier, filter, testing system
▶ Parameter Index
WT 5915C-T15060M2 | ||
Item | Test Standard | Data |
Color | / | Dark gray |
Thickness（mm） | ASTM D 374 | 0.5-3.0 |
Hardness（Shore OO） | ASTM D 2240 | 60 |
Thermal conductivity (W/(m·K)) | ASTM D 5470 | 15.0 |
Density (g/cm³) | ASTM D792 | 3.2 |
Volume resistivity（Ω·cm） | ASTM D 257 | ≥10^12 |
Breakdown voltage | ASTM D 149 | <0.1 |
Magnetic conductivity(@100MHz) | GB/T 32596—2016 | 1.71 |
2.0mm Absorptive frequency band（GHz) | GB/T 32596—2016 | 0.5mm:-2(dB)@10.0~18.0GHz |
0.75mm:-5(dB)@12~18GHz | ||
1.5mm:-10(dB)@10.3~14.3GHz | ||
2.0mm:-10(dB)@8.6~10.6GHz | ||
2.5mm:-10(dB)@6.5~8.8GHz | ||
3.0mm:-10(dB)@5.5~8.0GHz | ||
Temperature range (℃) | IEC 60068-2-14 | -40~160 |
Flame retardant rating | UL94 | / |
▶ Function and Characteristics
● High thermal interface performance: 45~55W/(m·K)
● High flexibility: can be perfectly embed in uneven interface
● High applicability: stable performance under -50~150℃
● Excellent flame retardant performance: meet UL94-V0 level
● RoHS, REACH comliance

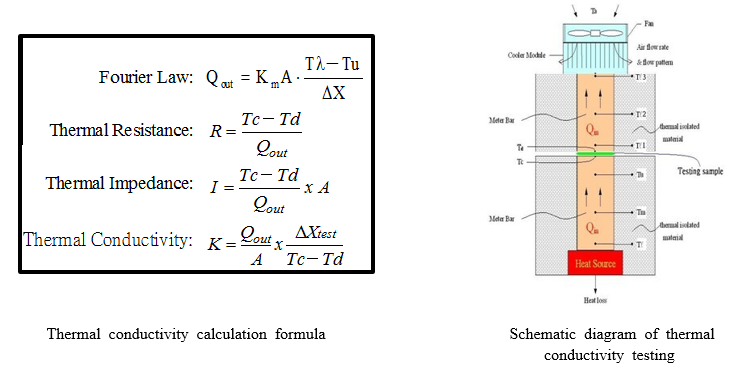

▶ Thermal conductivity testing information, calculation formulas, and schematic diagrams
● Test standard：ASTM D5470
● Test equipment：LW 9389
● Measurement end size：25.4*25.4mm
● Test sample size：27*27mm

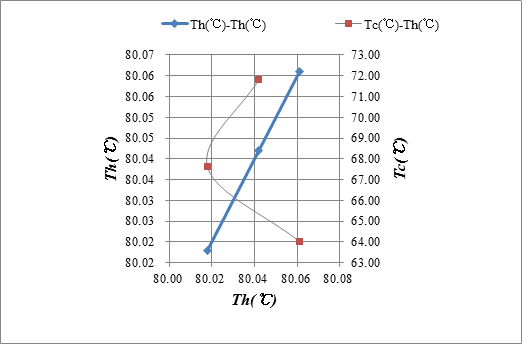

▶ Thermal conductivity test curve chart

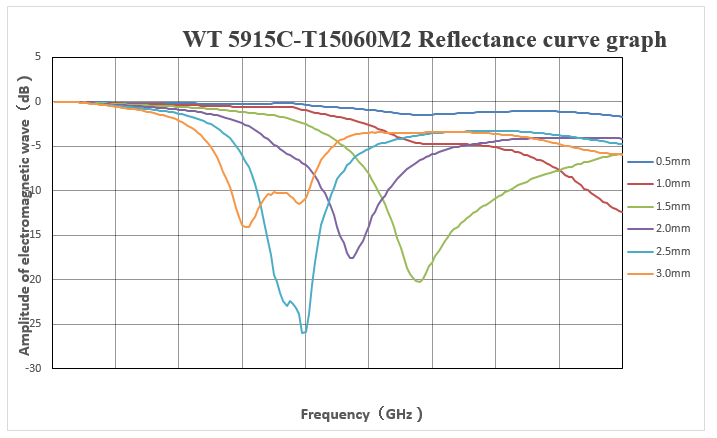

▶ Absorption performance test curve chart

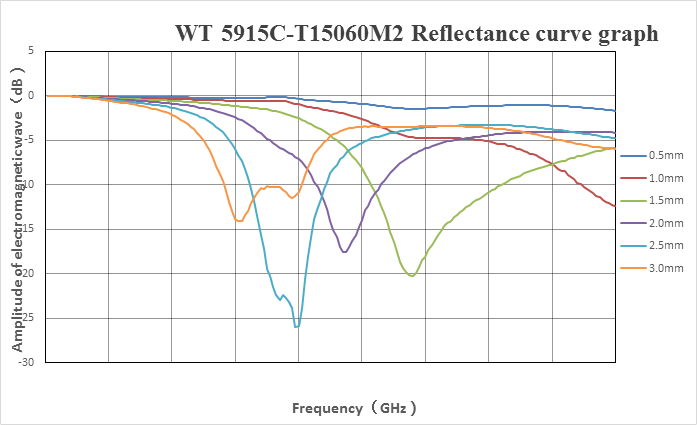

Absorption performance test curve chart
▶ Usage operation
Cover the product on the heating end at room temperature to complete the assembly.
▶ Packaging and Storage
● Specification: Customized by customers.
● Keep at room temperature in a cool, dry place. Shelf life: 12 months.
▶ Remarks
Waermtimo reserves the final amendment rights to product specifications and documentation.
