WT 5901-1623G Thermal conductive silicone cloth
▶ Typical Application
● High end equipments and automotive electronic coolings and heating components, such as electronic devices, semiconductor memory devices, etc
● General-purpose inverters, Medical equipments, Digital Signal Controllers
● Automotive electronics, such as on-board cameras, motor control units, automotive navigation, automotive lighting (LED), Dynamic Stability Controls
● Laser HUD light source
● Consumer microelectronics and hand held electronic devices
● Base station, IGBT module

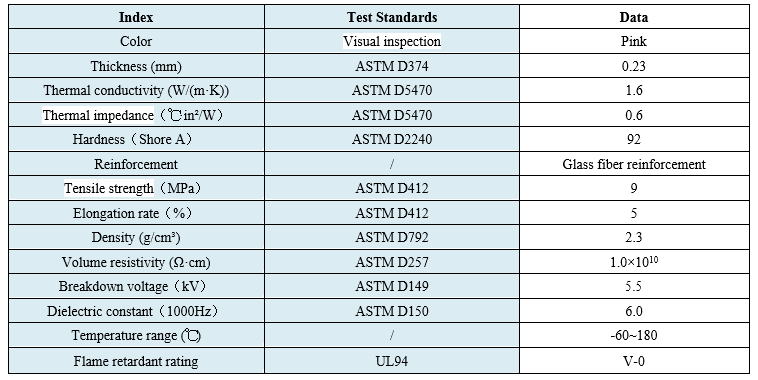

▶ Parameter Index

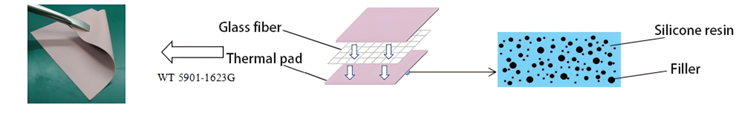

▶ Product Structure
▶Function and Characteristic
● High insulation performance: 5.5kV
● High tensile strength: 9 Mpa
● High applicability: stable performance under -60~180℃
● Good flame retardant performance: meet UL94-V0 level
● Meet RoHS, REACH standard

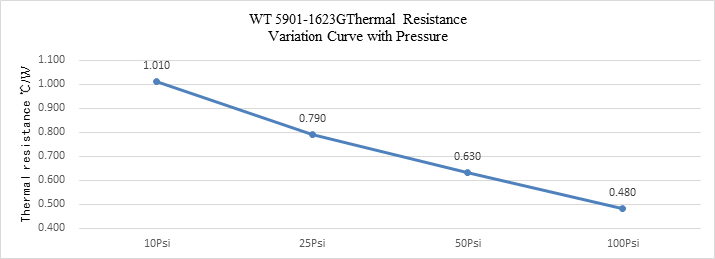

▶ Test data of thermal resistance and its change curve
Pressure Psi |
10 |
25 |
50 |
100 |
Thermal resistance （℃/W） |
1.010 |
0.790 |
0.630 |
0.480 |

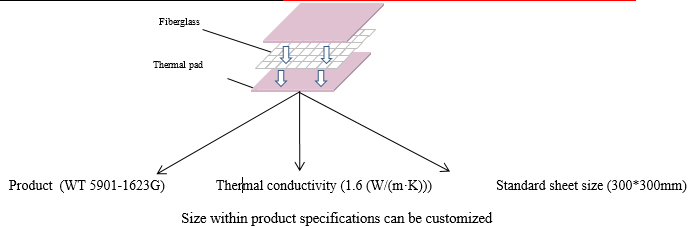

▶ Dimensions
▶ Remarks
Waermtimo reserves the final amendment rights to product specifications and documentation.
