WT 5912-H50-40 Thermal pad

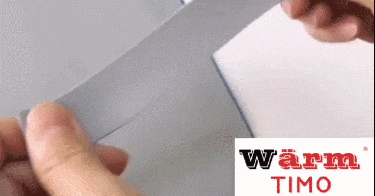

WT 5912-H50-40 The main application scenarios of thermal pads are between the internal chips and heat sinks of vibration sensitive handheld, wearable, and mobile terminal products; It can also be applied between the casings of some electronic products, providing functions such as heat dissipation, insulation, dust prevention, and waterproofing. It has the characteristics of low hardness, better interface filling, and can be reused multiple times.
▶ Typical Application
● High end equipments and automotive electronic coolings and heating components, such as electronic devices, semiconductor memory devices, etc
● General-purpose inverters, Medical equipments, Digital Signal Controllers
● Automotive electronics, such as on-board cameras, motor control units, automotive navigation, automotive lighting (LED), Dynamic Stability Controls
● Laser HUD light source
● Consumer microelectronics and hand held electronic devices
● Base station, IGBT module
▶ Parameter Index
Index | Test Standards | Data |
Color | / | Gray |
Thickness (mm) | ASTM D374 | 1.0-4.0 |
Thermal conductivity（W/(m·K)） | ASTM D5470 | 5.0 |
Hardness (Shore OO) | ASTM D2240 | 40 |
Elongation rate (%) | ASTM D412 | ＞300 |
Tensile strength (MPa) | ASTM D412 | 0.08 |
Volume resistivity （Ω·cm） | ASTM D257 | 1.0×1010 |
Density (g/cm³) | ASTM D792 | 3.3 |
Breakdown voltage (kV/mm) | ASTM D149 | ＞8 |
Temperature range (℃) | / | -50~150 |
Flame retardant rating | UL94 | V-0 |
Customized options | Single-side treatment/ single-side additional adhesive / PI reinforcement/ Insulating cloth reinforcement | |
▶ Function and Characteristics
● Excellent flexibility: elongation rate >300%
● High applicability: stable performance at -50 ~ 150 ℃
● Excellent flame retardant performance: meet UL94-V0 level
● RoHS, REACH comliance

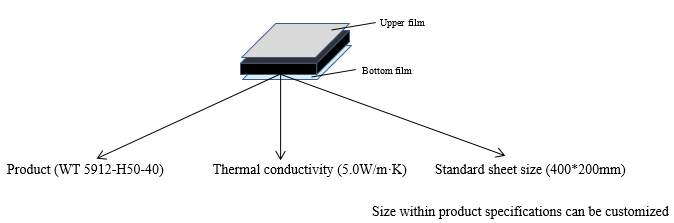

▶ Dimension
▶ Remarks
Waermtimo reserves the final amendment rights to product specifications and documentation.
