WT 5935C-100 0.2mm Thermal pad
WT 5935C-100 0.2mm ultra-thin high thermal conductivity pad uses the carbon fiber nanotube oriented tableting technology developed by WT. The thermal conductivity of 10W/(m·K) is maintained even at a thickness of 0.2mm. It is superior to traditional thermal pads in thermal conductivity and product elasticity.
▶ Typical Application
● High end equipments and automotive electronic coolings and heating components, such as electronic devices, semiconductor memory devices, etc
● General-purpose inverters, Medical equipments, Digital Signal Controllers
● Automotive electronics, such as on-board cameras, motor control units, automotive navigation, automotive lighting (LED), Dynamic Stability Controls
● Laser HUD light sources
● Consumer microelectronics and hand held electronic devices
● Base stations, IGBT modules
▶ Parameter Index
Index | Test Standards | Data |
Color | / | Black |
Thickness (mm) | ASTM D374 | 0.2 |
Thermal conductivity（W/(m·K)） | ASTM D5470 | 10 |
Hardness (Shore OO) | ASTM D2240 | 70 |
Density (g/cm³) | ASTM D792 | 2.6 |
Breakdown voltage (kV/mm) | ASTM D149 | ＜0.1 |
Temperature range (℃) | / | -50~150 |
Flame retardant rating | UL94 | V-0 |
▶ Function and Characteristics
● High thermal interface performance: 10W/(m·K)
● Ultra-thin: 0.2mm
● Excellent flexibility: can be perfectly embed uneven interface
● High applicability: stable performance at -50 ~ 150 ℃
● Excellent flame retardant performance: meet UL94-V0 level
● RoHS, REACH comliance

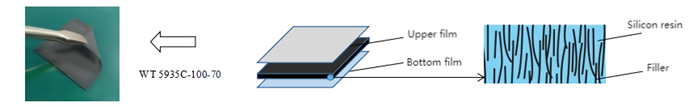

▶ Product structure

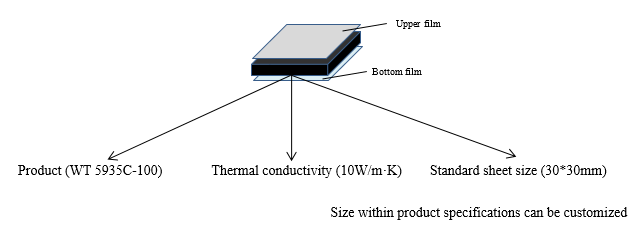

▶ Dimension
▶ Remarks
Waermtimo reserves the final amendment rights to product specifications and documentation.
