WT 5932-30P Thermal Grease
WT 5932-30P is a special formula specially designed for thermal grease between metal heat sinks and heaters, with high thermal conductivity and low construction resistance.
▶ Product features
● Solvent-free with Non-sag Properties
● Low thermal resistance, high thermal conductivity
● Smooth application performance

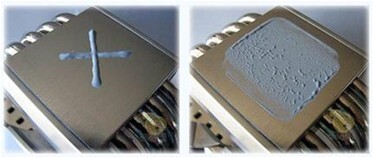

● Suitable for manual and fully automatic printing of metal interfaces
▶ Application Fields
● CPU/GPU Communication, network equipments, and microelectronics
● Laptops, desktops, industrial computers, and servers
▶ Parameter Index
Index | Temperature | Test Standard | WT 5932-30P |
Appearance | 25℃ | Visual | Grey |
Thermal conductivity (W/(m·K)) | No | ASTM D5470 | 3.0 |
Density (g/cm³) | 25℃ | ASTM D1475 | 3.0 |
Volatile rate (%) | 200℃/24Hours | Fed.Std.791 | ＜1.0 |
Thermal resistance (℃/w, 0.1mm) | 80℃ | ASTM D5470 | 0.03 |
Volume resistivity (Ω·cm) | No | ASTM D-257 | 1×108 |
Cone penetration (0.1mm) | 25℃ | GB/T269 | 280 |
Temperature (℃) | No | No | -40~150 |
Flame retardant rating | No | UL94 | V-0 |
▶ Characteristics and advantages
● Long lifespan:Thermal conductivity remains unchanged after 150 ℃/1000 hours
● Low oil exudation: Oil separation rate less than 1% after 200 ℃/8 hours
● Low volatility: less than 1% volatility after 200 ℃/24 hours
▶ Packaging and storage
● Usually packaged in 1kg plastic cans, but it is not ruled out that other specifications of packaging may be provided.
● Keep in ambient conditionsat dry, cool, and ventilated locations, the shelf life is 12 months.
▶ Reference data

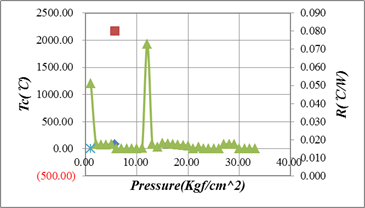

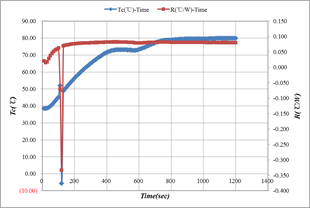

▶ Thermal test
● Test Standard：ASTM5470
● Test Equipment：LW9389
