WT5935C-250 Thermal Pad
WT5935C-250 High thermal conductivity pad uses the carbon fiber nanotube oriented tableting technology developed by WT. It is superior to traditional thermal pads in thermal conductivity and product elasticity. The product is made of silicone rubber filled with carbon-based materials.
▶ Typical Application
● High end equipments and automotive electronic coolings and heating components, such as electronic devices, semiconductor memory devices, etc
● General-purpose inverters, Medical equipments, Digital Signal Controllers
● Automotive electronics, such as on-board cameras, motor control units, automotive navigation, automotive lighting (LED), Dynamic Stability Controls
● Laser HUD light source
● Consumer microelectronics and hand held electronic devices
● Base station, IGBT modules
▶ Parameter Index
Index | Test Standards | Data |
Color | / | Black |
Thickness (mm) | ASTM D374 | 0.5~5.0 |
Thermal conductivity (W/(m˙K)) | ASTM D5470 | 25 |
Hardness (Shore OO) | ASTM D2240 | 55/65 |
Density (g/cc) | ASTM D792 | 2.6 |
Breakdown voltage (kV/mm) | ASTM D149 | ＜0.1 |
Temperature range (℃) | / | -50~150 |
Flame retardant rating | UL94 | V-0 |
Custom option | Double sided non-stick/single-sided adhesive/double-sided sticky | |
▶ Function and Characteristics
● High thermal interface performance: 22.5~27.5 W/(m·K)
● High flexibility: can be perfectly embed in uneven interface
● High applicability: stable performance under -50~150℃
● Excellent flame performance: meet UL94-V0 level
● RoHS, REACH comliance

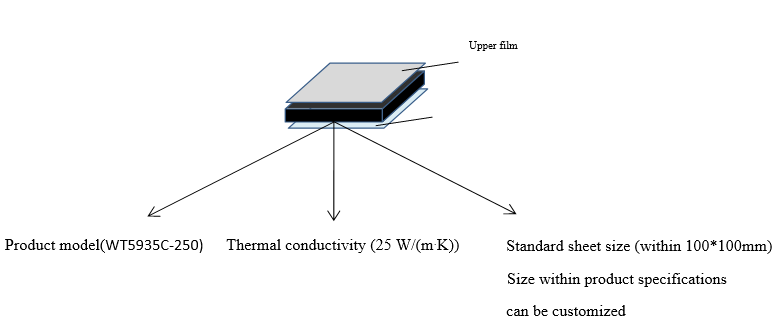

▶ Dimension
▶ Remarks
Waermtimo reserves the final amendment rights to product specifications and documentation.
