WT5935C-350 Thermal Pad

WT 5935C-350 High thermal conductivity pad uses the carbon fiber nanotube oriented tableting technology developed by WT. It is superior to traditional thermal pads in thermal conductivity and product elasticity. The product is made of silicone rubber filled with carbon-based materials.

▶ Typical Application

● High end equipments and automotive electronic coolings and heating components, such as electronic devices, semiconductor memory devices, etc

● General-purpose inverters, Medical equipments, Digital Signal Controllers

● Automotive electronics, such as on-board cameras, motor control units, automotive navigation, automotive lighting (LED), Dynamic Stability Controls

● Laser HUD light sources

● Consumer microelectronics and hand held electronic devices

● Base station, IGBT module

▶ Parameter Index

Index	Test Standards	Data
Color	/	Black
Thickness (mm)	ASTM D374	0.5~4.0
Thermal   conductivity（W/(m·K)）	ASTM D5470	35
Hardness (Shore   OO)	ASTM D2240	50/65
Density (g/cm³)	ASTM D792	2.4
Breakdown voltage (kV/mm)	ASTM D149	＜0.1
Temperature range (℃)	/	-50~150
Flame retardant   rating	UL94	V-0
Customized   options	Double-sided   non-stick / single-sided adhesive / double-sided adhesive

▶ Function and Characteristics

● High thermal interface performance: 31.5~38.5W/(m·K)

● High flexibility: can be perfectly embed in uneven interface

● High applicability: stable performance under -50~150℃

● Excellent flame retardant performance: meet UL94-V0 level

● RoHS, REACH comliance

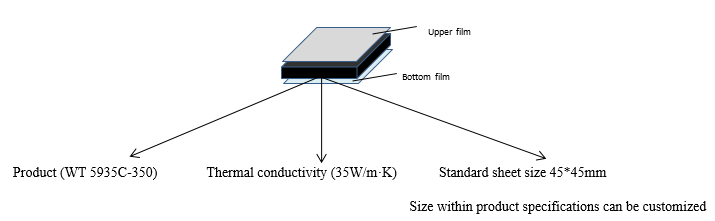

▶ Dimensions

▶ Remarks

‌Waermtimo reserves the final amendment rights to product specifications and documentation.
